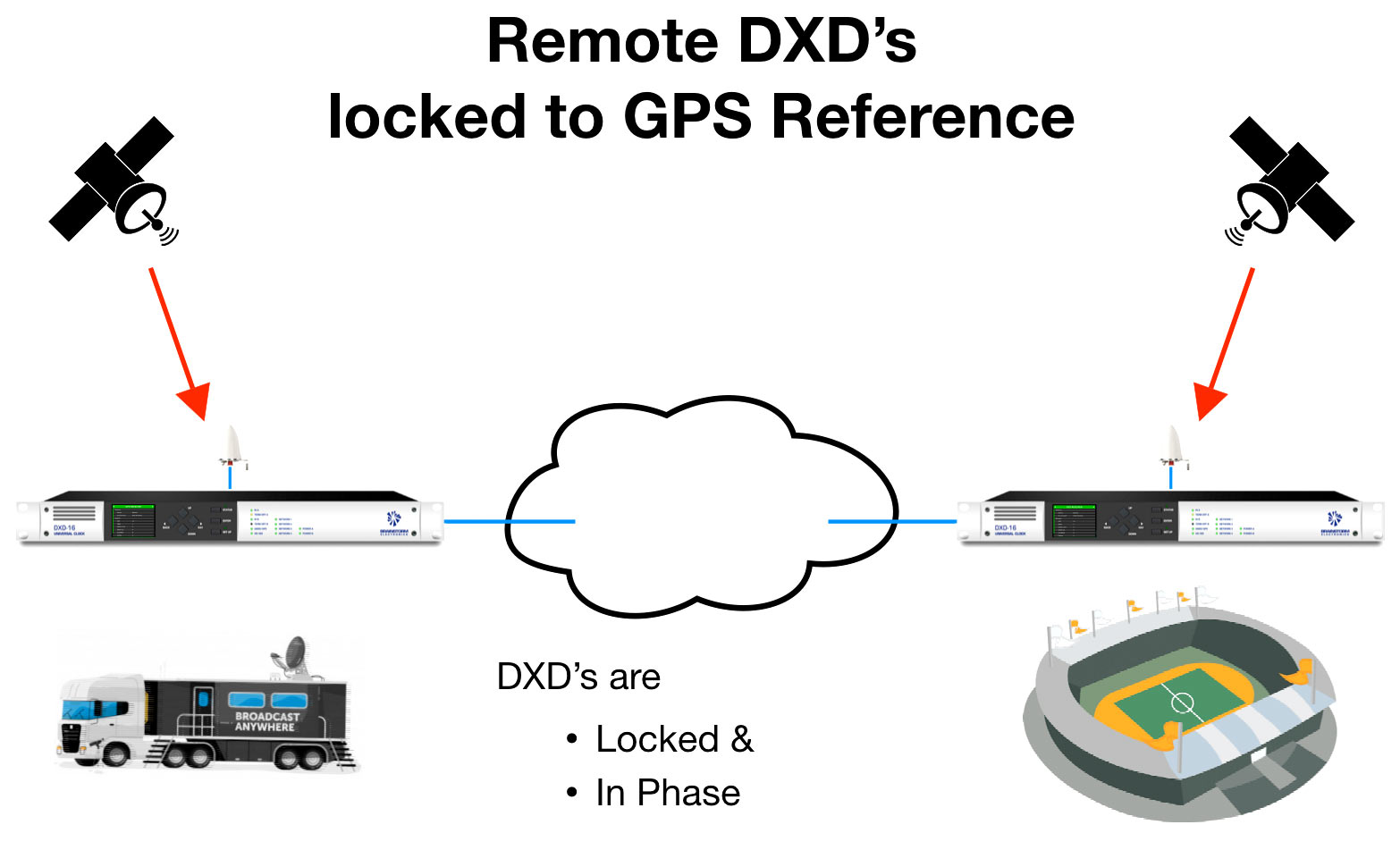

外部GNSS / GPSレシーバーをDXD-16に接続し、外部タイミングソースとして高精度で安定したGPSクロックとTOD(Time Of Day)を提供する事が出来ます。この機能を使用すると、遠隔地にある複数のDXD-16は、一度GPSを参照すると、互いにロックし位相も合います。オプションで、内部GPSレシーバーを取り付ける事が出来ます。
Time Code (firmware): 複数のタイムコードストリームを同時に生成し、BNCユニバーサル出力と2つのバランスドタイムコード出力(DB25)にルーティングする事が出来ます。タイムコードは、ユーザが設定する事も、調整可能なオフセットを備えた外部ソース(LTC,VITC,GPS)から取得する事も出来ます。(TOD)又はSDI(オプション)を選択します。

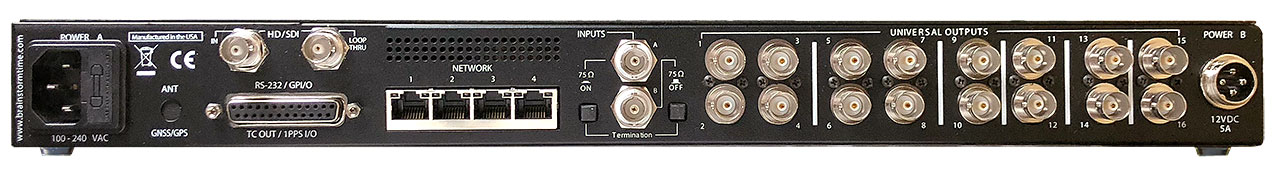

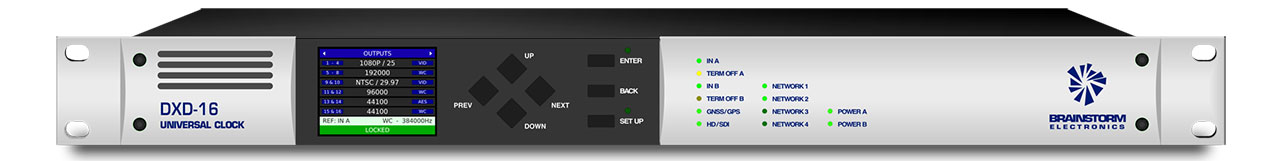

DXD-16 Universal Clock Specifications
PTP
Complies with IEEE-1588 V2
Unicast / Multicast operation

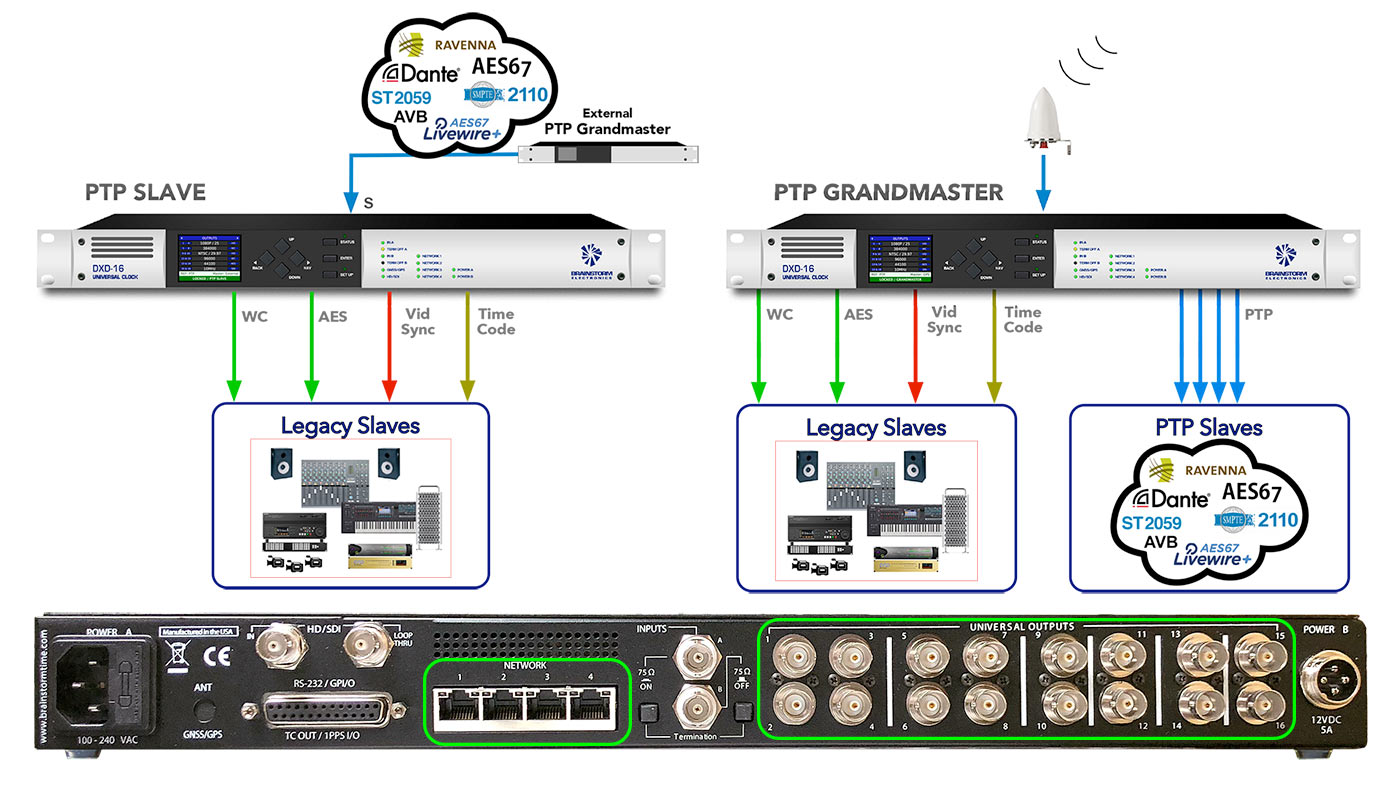

Configurable as a Grandmaste , slave or Boundary clock
4 Independent Gigabit Ethernet ports (RJ-45)

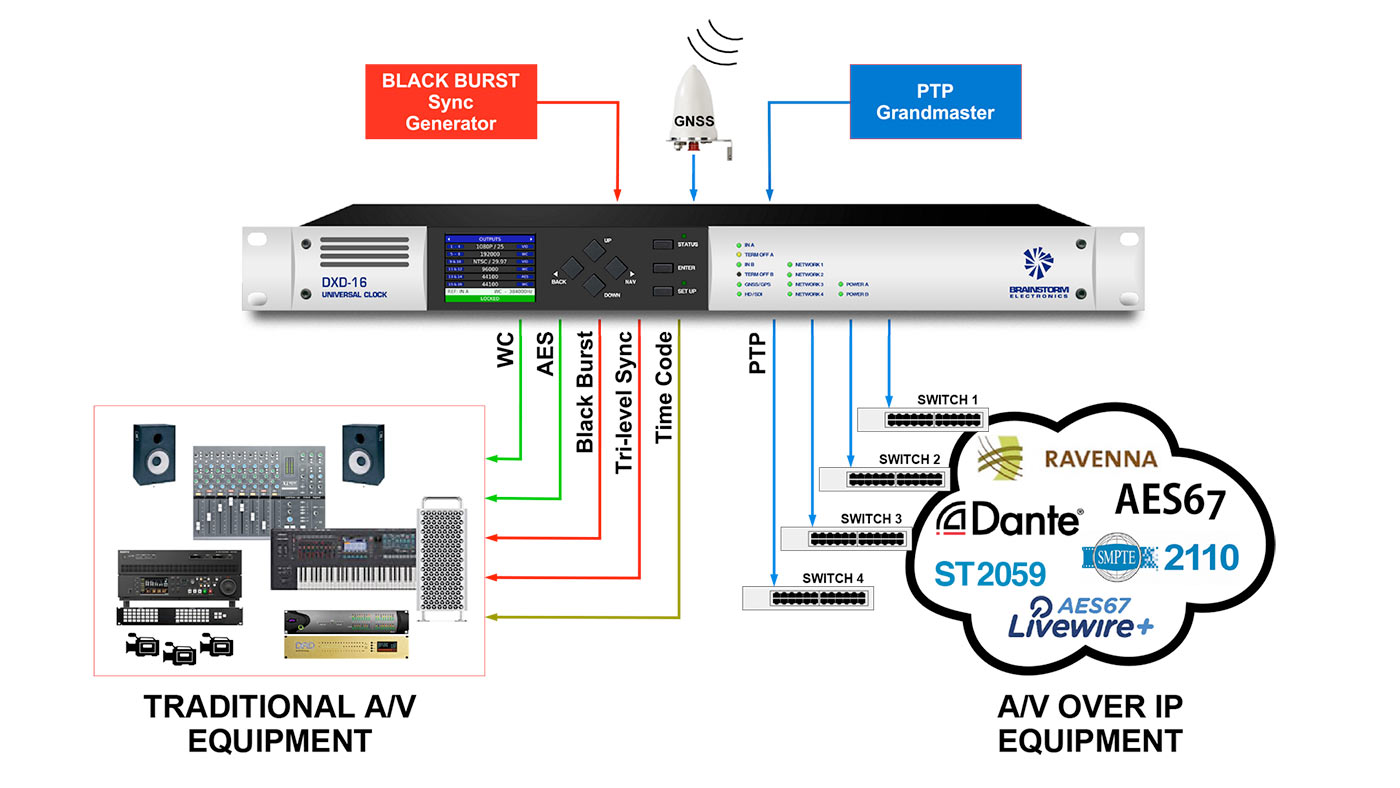

SYNCHRONIZATION SOURCES
GPS
PTP
Word clock
AES
Video sync (Black Burst or HD tri-level sync)
10MHz
SDI
GPS INPUTS
External GPS receiver:
• 10 MHz / 1PPS into BNC universal input
• TOD Serial messages: RS232 into DB25
Internal GPS receiver (option):
• SM antenna input
UNIVERSAL INPUTS
2 BNC input connectors (75Ω) accept the following:
• Word clock
• AES
• Video sync (Black Burst or HD tri-level sync)
• 10 MH
SDI INPUT(option)
BNC 75Ω
LEGACY GENERATOR
rates from 32 to 96 KHz
• Video sync:
- NTSC/PAL black burst
525/29.97/30i
625/23.98/24/25i
- HD tri-level sync
720/23.98/24/25/29.97/30/50/59.94/60P
1080/25/29.97/30i
1080/23.98/24/25/29.97/30sF
1080/23.98/24/25/29.97/30/50/59.94/60p
• 10 MHz
• 1PPS
• Time Code (option)
UNIVERSAL OUTPUTS
16 outputs - in 6 groups
BNC - 75Ω
Output signal: any of the generated legacy references
TIME CORD OUTPUTS(option)
Time Code streams can be sent via the following:
• Unbalanced: Universal outputs (BNC
• Balanced: 2 outputs provided on the DB25 connecto
OSCILLATOR
TCXO: +/- 1ppm
OCXO: +/-10ppb
BATTERY BACK UP
Internal Time of Day (TOD) clock is battery backed up
